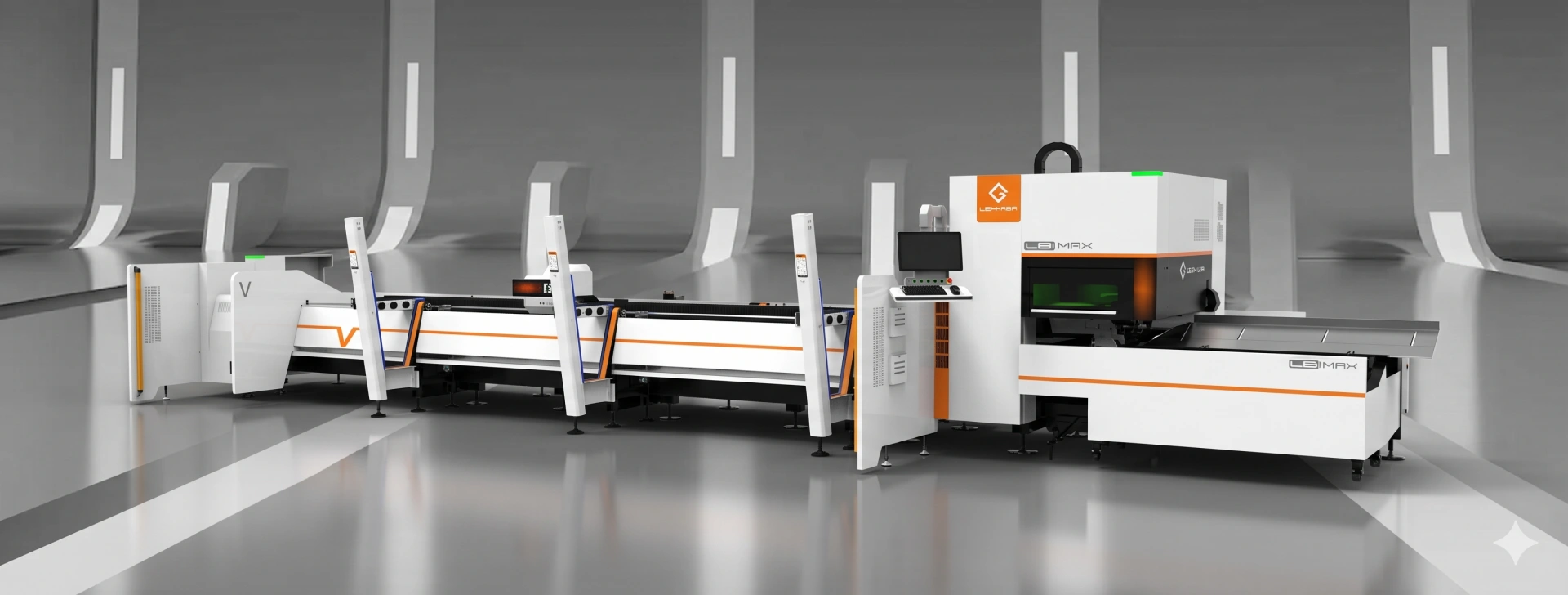

L12MAX L16MAX: High-Speed Precision Fiber Laser for Small Tube Processing (Ø8–120mm)(Golden Laser support customized laser solution depends on your project)
Revolutionize your production with the L12MAX L16MAX tiny tube fiber laser cutting machine. Engineered for high-speed efficiency, it features an ultra-fast automatic loading system with seamless switching between fully and semi-automatic modes. Equipped with a zero-scrap chuck and floating support design, the L12MAX L16MAX ensures maximum material utilization and high-precision results for tubes ranging from 8mm to 120mm or 8mm to 160mm. Experience zero-waste manufacturing and versatile adaptability in one compact, rapid-production solution.
Zero-Waste Material Savings: Eliminates tailing scrap to maximize raw material usage and boost profit margins.
Faster Production Cycles: Minimizes non-cutting intervals to accelerate output and meet tight delivery deadlines.
High-Efficiency Small-Tube Processing: Delivers stable, high-precision cutting specifically optimized for high-volume small tubes.
Automated High-Speed Loading: Slashes material handling time and labor costs.
Dual-Mode Production: Switches between full-auto and semi-auto modes to fit any batch size.
Multi-Profile Compatibility: Seamlessly feeds and cuts round, square, and complex industrial tubes.
Zero-Scrap Efficiency: Eliminates tailing waste without complex, high-maintenance hardware.
Precision Tube Stability: Ensures secure gripping for consistent, high-accuracy cuts.
Lower Cost Per Part (CPP): Maximizes yield per tube to directly boost profit margins.
Long-Tube Accuracy: Eliminates whipping and sagging to prevent deformation.
End-to-End Stability: Ensures continuous support throughout loading and unloading.
Scratch-Free Handling: Safely processes round, square, and custom profiles without surface damage.
Rapid Onboarding: Intuitive interface cuts training time for fast, error-free operation.
Faster Job Setups: Guided workflow streamlines layout and path planning to maximize uptime.
Zero Trial-and-Error Waste: Built-in cutting settings ensure first-part accuracy across tube thicknesses.
| Model name | L12MAX / L12MAX-3D ; L16MAX / L16MAX-3D |
| Processing pipe size range | L12MAX: Round tube Ø 8mm-120mm , square tube □ 8mm8mm-120mm120mm L16MAX: Round tube Ø 8mm-160mm , square tube □ 8mm8mm-160mm160mm |
| Laser source | MAX fiber laser |
| Laser power | 1500W - 3000W |
| Max acceleration | 1.5g |
| Repeatability | 0.03mm |
| Rotational speed | 200r/min |
| Loading machine capacity | 1.5T (fully auto-feeder) / 350kg (semi auto-feeder) |
| Automatic feeding pipe requirements | Round tube: Ø15mm-100mm , square tube: □ 15mm15mm-100mm100mm Tube length: 5700mm - 6300mm |
| Auto / semi-auto loading tube size range | Auto: Ø 20mm-80mm , □ 20mm20mm-80mm80mm Semi-auto: Ø 8mm-120mm , □ 8mm8mm-120mm120mm |
| Application | Metal fence, metal furniture, scaffolding, fitness equipment, pipe fence, automotive parts, trolley |
