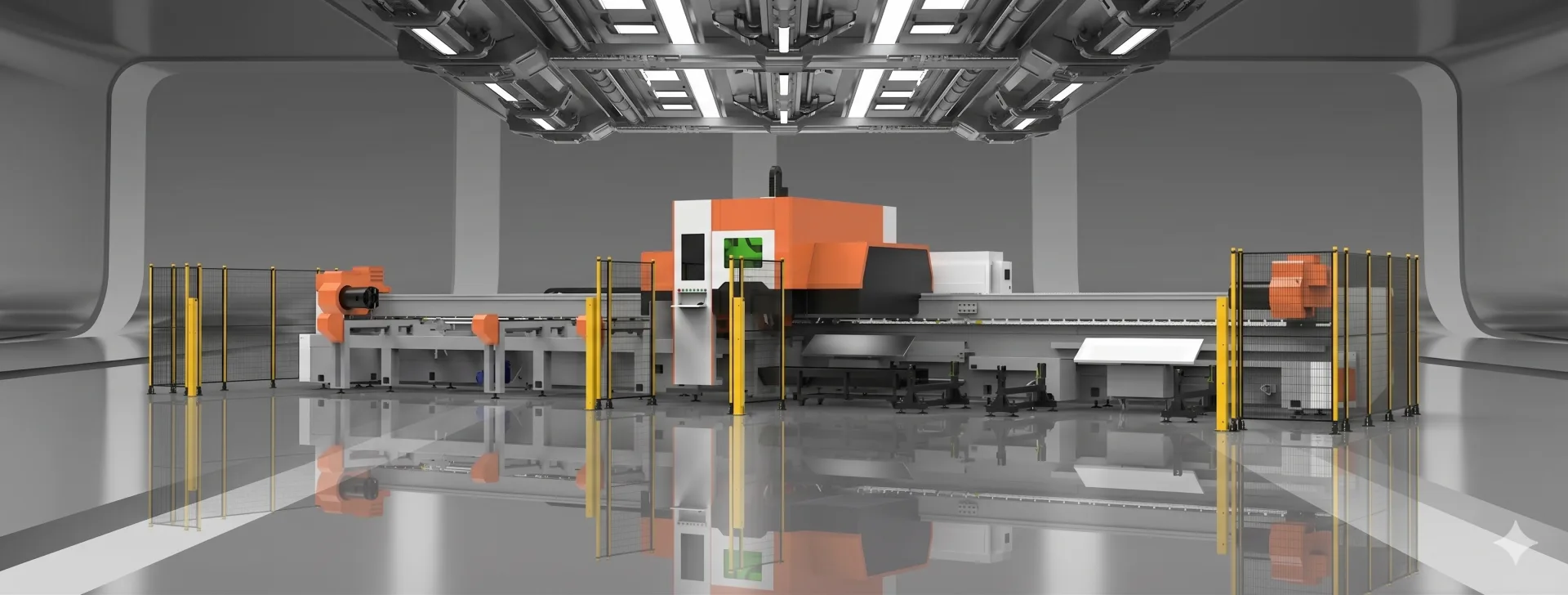

Name: Heavy-Duty Bevel Pipe Laser Cutting Machine L35-3C-3D
Brand: Wuhan Golden Laser Co., Ltd.
Price: 6000.0 USD

General Information

General Information

3D Heavy-Duty Bevel Pipe Laser Cutter

3D Pipe Laser Cutting Machine L35-3C-3D is a high-end, 3-chuck fiber laser engineered for oversized, extra-long profiles. It handles heavy pipes exceeding 360 mm in diameter (optional up to ∅550mm and 1.0 ton in weight with precision bevel cutting. Integrated with the FSCUT5000A system, TubesT software, and automated loading, it delivers a smart, zero-scrap production solution.

Video Display of 3D Heavy-Duty Bevel Pipe Laser Cutter

Highlights of Heavy-Duty 3-Chuck Bevel Pipe Laser Cutting Machine

Three Chucks, Zero Waste, Max Profits

• True Zero Scrap: Advanced reversal cutting eliminates waste, saving you thousands in raw material costs.

• No Deformation: Three synchronized chucks provide rock-solid clamping for heavy, extra-long profiles with zero sagging.

• Auto Flexibility: Seamlessly switches between 2-chuck and 3-chuck modes to slash setup times and manual labor.

Fully Automated Loading & Unloading System

• Mixed Loading: Continuous, hands-free loading of different tube lengths simultaneously.

• Any Profile: Highly compatible with round, square, rectangular tubes, heavy I-beams, and channel steels.

• Scratch-Free Unloading: Floating flip plates collect various lengths gently to protect surface quality.

• Centralized Storage: High-capacity storage built for quick forklift retrieval to slash labor costs.

Lower Shipping. Less Footprint. Longer Durability

• Obstacle-Free Loading: Lower clamping height for safer, faster heavy-pipe handling.

• Triangular Stability: Reinforced structure maximizes load capacity and chuck durability.

• Lower Shipping Costs: Segmented modular bed fits containers perfectly to cut freight expenses.

• Easy Setup: Quick on-site modular assembly with a reduced factory footprint.

Eco-Friendly Dust Extraction System

Equipped with a high-efficiency dust extraction and ventilation system, it instantly captures heavy smoke and dust generated during tube cutting. This ensures a clean, eco-compliant factory environment while protecting your operators' health.

3D Bevel Cutting (Ready to Weld)

• Zero Secondary Grinding: Perfect ±45° and Y-shape bevels ensure seamless splicing for direct, instant welding.

• Tilting Cutting Head: Effortlessly cuts complex geometries, bevel holes, and heavy tubes in any orientation.

• Flawless Welding: High-precision tracking eliminates common welding defects like porosity and slag inclusion.

Cut Material Waste & Eliminate Setup Downtime

• Ultra-Short Tail Waste: Barrel-type chuck minimizes scrap to maximize material utilization.

• One-Click Clamping: Full-stroke 350mm chuck automatically adapts to any tube size instantly.

• No-Fixture Adaptation: Self-centering design instantly secures heavy I-beams and channel steels.

• Dust-Proof Durability: Fully enclosed structure prevents gear jamming to eliminate maintenance costs.

Instant, Drawing-Free Tube Nesting

• Skip the CAD: Design and modify parts directly within

TubesT nesting software—no external CAD needed.

• One-Click to Cut: Instantly sync optimized profiles to

the Bochu FSCUT5000A system, eliminating manual data entry.

• Lag-Free Control: Smooth, high-speed multi-axis synchronization

built specifically for heavy, large-diameter pipes.

Technical Data of 3D Bevel Laser Cutting Machine

Models	L35-3C-3D
Processing pipe size range	round tube：Ø20mm-350mm square tube：20mm20mm- 350mm350mm Support optional extension up to ∅630mm
Range of Loading Pipe Lengths	3500mm-6000mm (support optional extension up to 12m）
Laser power	3000W- 20kW
Max. acceleration speed	0.5g
Positioning accuracy	0.05mm
Max. static load capacity for a single tube	1T
Bevel Cutting Angle	±45°
Overall Weight Capacity of the Loading Machine	3T
Max. rotation speed	60r/min

Application of Heavy Duty Tube Laser Cutting Machine L35-3C-3D

Construction machinery industry:

Many major load-bearing structures in construction machinery use ultra-long and ultra-thick channel steel, I-beams and other pipes. The traditional plasma cutting and flame cutting methods have low processing efficiency and quality. But the large cutting machine can completely solve the problem of heavy pipe processing. In the future, cnc profile cutting will gradually replace these methods. The material texture and style are maximized, and the building's proportions, texture, and space are rigorously expressed. With the delicate mind of laser process, all the structural elements are fully expressed in the sectional plane.

Shipbuilding industry:

The automatic processing capability of the large cutting machine can speed up the processing efficiency of the pipe components. Nowadays, "precision shipbuilding" and "fast shipbuilding" have become the main trends in the development of ship manufacturing, and cnc pipe cutting machine technology has been developing rapidly, accounting for more than 70% of the entire laser processing industry. The marine manufacturing industry is mainly based on the raw material of steel plates. Using the laser to cut the plate can greatly shorten the production cycle and reduce the processing cost at the same time. The use of a laser cutting machine for undercutting cancels the assembly margin, eliminates the phenomenon of on-site trimming, reduces labor and plate waste, significantly accelerates the speed of frame assembly, and improves the quality of assembly significantly.

Steel structure industry:

Large laser cutter can realize welding-free, making the product more stable. Tube cutting is currently the largest share of laser applications of cnc pipe cutting machine china, most of which are laser cutting applications for medium and high power metal materials. This, of course, includes stainless steel, carbon steel, copper, aluminum and other major metals in everyday life, of which stainless steel, carbon steel accounted for the most.
